Breathing Walls and Ventilation

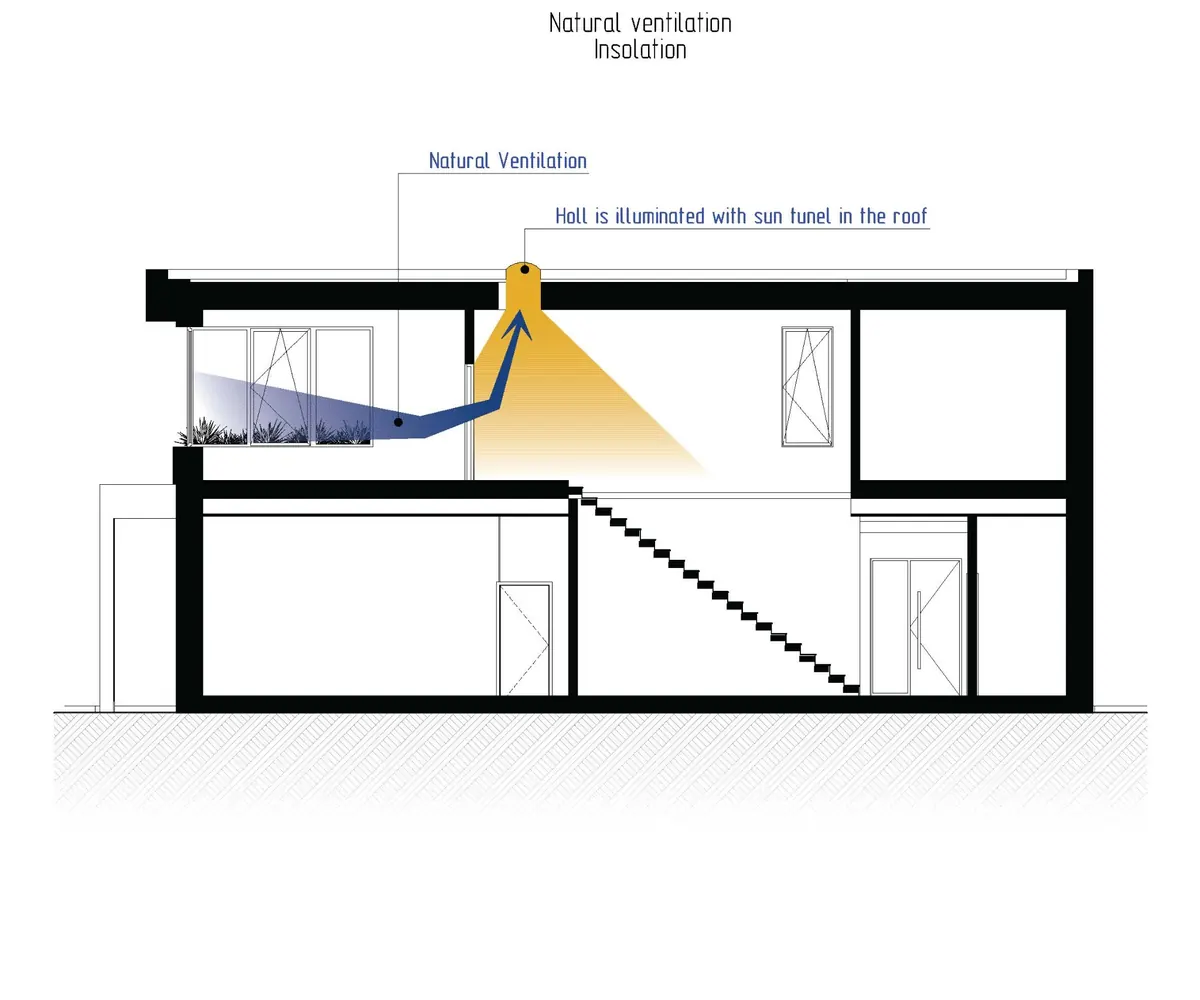

Natural ventilation can support purge airing and daylight strategy, but baseline air quality in a low-energy building should be designed and controlled.
Core Idea
Page 01 / 07The useful idea behind breathing walls is drying capacity, not air leakage. A high-performance wall can be vapour-open, moisture-safe and able to dry, while still being airtight against uncontrolled air movement.
Most confusion starts when air leakage and vapour diffusion are described with the same word: breathing. People need oxygen, CO₂ dilution and odour removal. Walls do not provide that service. A wall assembly should control heat, moisture and durability, while a ventilation system supplies and extracts air deliberately.
Wrong reading
A leaky wall is treated as a natural ventilation system. In reality, air through cracks is uncontrolled heat loss, pollutant movement and moisture transport.
Better reading
A moisture-safe wall has planned drying paths, correct layer order and controlled air movement through designed ventilation, not through the envelope.
Air vs Vapour
Page 02 / 07Air permeability and vapour permeability are different movements. A wall can be vapour-open while still being airtight, and many high-performance assemblies are designed exactly this way.
Air permeability
- Happens through cracks, unsealed joints, service penetrations, window interfaces and roof-to-wall junctions.
- Driven by wind, stack effect and pressure differences from mechanical systems.
- Moves heat, moisture, dust, pollutants and odours as a mass of air.
- Measured at building level by airtightness testing, typically with a Blower Door.
Vapour permeability
- Happens through the material itself, not through open gaps or cracks.
- Driven by vapour-pressure difference and temperature conditions.
- Described with values such as vapour resistance factor μ and equivalent air layer thickness sd.
- Important for drying potential, condensation control and long-term durability.
Airtightness
Page 03 / 07n50 is a quality-control metric, not normal daily ventilation. The Blower Door test shows how much uncontrolled leakage remains in the envelope under test pressure.
The Passive House airtightness criterion is commonly expressed as n50 ≤ 0.6 h⁻¹ at 50 Pa. That means the tested leakage rate must be no greater than 0.6 air changes per hour under the pressure-test condition. It is not a target for everyday fresh-air supply.
Construction logic
The important point is not the number alone. It is the continuous air barrier behind the number: sealed penetrations, window installation, roof and slab junctions, and testing before finishes hide defects.
Moisture logic
Air leakage can carry warm humid indoor air into colder assembly layers, where it may condense. Airtightness reduces that hidden moisture transport.
Ventilation
Page 04 / 07MVHR works best when the envelope is tight. A heat-recovery unit can only recover heat from the air that passes through it, not from air that bypasses it through cracks.
Extract
Warm stale air is extracted from wet rooms, kitchens, bathrooms and utility spaces.
Recover
The heat exchanger transfers much of that heat to incoming outdoor air without mixing the air streams.
Supply
Fresh filtered air is supplied to living rooms and bedrooms at controlled flow rates.
Balance
The system performs correctly only when leakage does not dominate the pressure and airflow picture.
Verify
Commissioning and filter maintenance keep the designed airflow from becoming only a theoretical value.
Fresh-air reference
A common Passive House planning reference is around 30 m³/h of fresh air per person at normal activity. This is about 8.3 L/s per person and helps keep CO₂, odours and humidity within a comfortable range.
Windows still matter
Openable windows are useful for purge ventilation, night cooling and user control. They are not a stable baseline system because airflow depends on wind, temperature difference, rain, noise, security and occupant behaviour.
Mould Risk
Page 05 / 07Mould is a building-physics alarm, not a cosmetic defect. It appears when moisture remains available long enough on or inside a material.
The usual causes are cold surfaces, thermal bridges, condensation, wet insulation, poor ventilation, hidden leaks, blocked drying paths or furniture placed against cold external walls. The dew point matters because it describes when water vapour begins to condense into liquid water, but the practical risk is whether a surface or material layer stays cold and wet long enough for damage.
For the deeper moisture calculation logic, continue with Dew Point Explained.
System Logic
Page 06 / 07Passive House Block is a wall system because building performance does not come from insulation thickness alone. It comes from a coordinated envelope.
Airtight
Control air movement through the envelope so fresh air comes through planned ventilation routes.
Dry
Keep structural and insulation layers moisture-safe by designing the layer sequence and drying path.
Warm
Reduce heat loss and cold interior surfaces through exterior insulation and continuous envelope detailing.
Ventilated
Pair the envelope with controlled fresh-air supply, extraction and heat recovery where the project requires it.
The same logic connects this article with the Passive House Block wall system, the continuous thermal envelope and warm window and door installation. Airtightness, thermal bridge control, window junctions and ventilation should be treated as one building-performance system.
Sources
Page 07 / 07Airtightness and air barriers
Ventilation and indoor air
Moisture and mould
Frequently asked questions
Key ventilation and moisture points from this technical note.
Do breathing walls provide fresh air?
No. Vapour-open or hygroscopic materials can buffer moisture and help assemblies dry, but they do not provide oxygen, remove CO2 or replace ventilation.
Is an airtight house unhealthy?
No. Airtightness stops uncontrolled leakage; ventilation provides controlled fresh air. The unhealthy situation is a tight house without a properly designed ventilation system.
Can I simply ventilate by opening windows?
Windows are useful for purge ventilation and user control, but they are not a stable baseline system. Airflow depends on wind, temperature difference, user behaviour, rain, noise and security.
Does vapour-open insulation always prevent mould?
No. Vapour openness can help drying, but it does not fix air leakage, rain penetration, thermal bridges or wrong layer order. Wet insulation also performs worse.
Why does mould often appear around windows and corners?
Windows and corners are common cold-surface zones. If surface temperature is low, local relative humidity rises, and poor ventilation can allow mould growth.
